Examples of our Work
View examples of our custom control panels builds across a range of industries and read our project spotlights to learn more about our design, build, and control system integration capabilities.
Food & Beverage
- NEMA 4X 3-door stainless steel enclosure
- PLC rack
- (38) motor starters
- (22) Variable frequency drives (VFD)
- (4) Ethernet Switches
Processing Equipment
- Stainless steel watershed enclosure
- PLC processor
- 10.4" touch display
- (4) Variable frequency drives (VFD)
- Ethernet switch
Electrical Engineering
- NEMA 4 mild steel enclosure
- PLC rack
- Ethernet switch
- Duplex receptical
Food & Beverage
- NEMA 4X stainless steel enclosure with window kit
- Flex I/O rack
- Dynamic self-check flame amplifier with ultraviolet flame sensor
- (2) Universal temperature transmitters
- Ignition transformer
Aerospace
- Sloped mild steel enclosure
- PLC processor
- Servo Drive
- Unmanaged Ethernet switch
- 7" touch display
Transportation
- Mild steel free standing enclosure
- (2) I/O racks
- Redundant power supply
Food & Beverage
- NEMA 4X stainless steel enclosure
- 7" touch display
- PLC rack
- Ethernet switch
Muncipality
- Painted steel back panel
- PLC rack
- Unmanaged Ethernet switch
- Analog signal isolators
- DC-DC converter
Refrigeration (Airixa)
- Mild steel 2-door enclosure
- PLC rack with additional I/O racks
- 22" touch display
- (2) Ethernet switches
- Ewon Cosy remote access gateway
Food & Beverage
- NEMA 4X 2-door stainless steel enclosure
- 15" touch display
- PLC rack
- (16) Variable frequency drives (VFD)
- (3) 480:120V transformer
Municipality
- Painted steel back panel
- PLC rack
- (5) Variable frequency drives (VFD)
- Pressure transducer
- Ethernet switch
Municipality
- NEMA 12 mild steel enclosure
- PLC rack
- 40W panel heater
- Network router
- 10" touch display
Pharmaceutical
- NEMA 4X stainless steel enclosure
- PLC rack
- Vortex cooler
- (3) Vriable frequency drives (VFD)
- Ethernet switch
- Full-szie printer
Food & Beverage
- 32' MCC housing with 20 sections
- (36) Variable frequency drives (VFD)
- 600A horizontal power bus
Food & Beverage
- NEMA 12 mild steel enclosure
- Flex I/O rack
- Ethernet switch
- Door-mounted circle chart recorder
- Filter regulator
- Green & amber stack lights
Municipal Biofuel
- NEMA 12 mild steel free standing enclosure
- (3) Variable frequency drives (VFD)
- (2) Cooling filter fans
- Ethernet switch
- Molded case circuit breaker
Pharmaceutical
- NEMA 12 mild steel enclosure
- PLC rack
- Variable frequency drive (VFD)
- 4" touch display
- (5) Power controllers
Municipality
- Painted mild steel enclosure housing (3) panels
- PLC rack
- (2) 40AH batteries
- Solid state voltage sensing relay
- Phase loss relay
Food & Beverage
- NEMA 4X Stainless steel watershed enclosure
- Flex I/O rack
- (4) Servo drives
- (6) Variable frequency drives (VFD)
- Managed Ethernet switch
- 4000 BTU/hr air conditioner
Energy
- NEMA 12 mild steel enclosure
- (4) Variable frequency drives (VFD)
- Motor Starters
- Ethernet switch
- Air conditioner
Food & Beverage
- NEMA 4X stainless steel watershed enclosure
- PLC rack
- (7) Variable frequency drives (VFD)
- Ewon Cosy remote access gateway
- Ethernet switch
- Safety underspeed monitor
- (2) Flame detector relays
Food & Beverage
- NEMA 4X stainless steel enclosure
- 24" industrial touch panel
- IOLOGIK remote ethernet I/O modules
- Ethernet switch
- Ewon Cosy remote access gateway
Refrigeration (Airixa)
- 3-door mild steel enclosure
- PLC processor with (3) I/O racks
- (3) Ethernet switches
- Ewon Cosy remote access gateway
- 22" touch display
Food & Beverage
- NEMA 4X stainless steel enclosure
- PLC processor with I/O module
- Single-axis servo drive
- 7" touch display
- Ethernet Switch
Food & Beverage
- NEMA 4X stainless steel enclosure
- PLC processor
- Vortex cooler - 1700BTU/hr
- (3) Servo drives
- 7" touch display
- Stack light - red, amber, green
Baseball Stadium
- NEMA 12 mild steel enclosure
- PLC rack
- Ethernet switch
- Line filter and circuit protection
Project Spotlights
Food & Beverage
Process Solutions Commissions New Fryers and Modern Control System for a Michigan Based Potato Chip Company
Process Solutions recently completed a project for a small potato chip company that entailed the commissioning of new batch fryers coupled with the design, build
May 18, 2018
Food & Beverage
Latest Airixa Install Brings Modernized Refrigeration Control Systems to Two Avocado Processing and Storage Facilities in Mexico
If you purchased an Avocado this year with a sticker on it proclaiming, “Produce of California” or “Produce of Mexico,” there is a good chance
November 1, 2017
Project Spotlight
Process Solutions Delivers Control Panels for New University of Washington Chiller Plant
Process Solutions is in the late stages of a major industrial chiller project on the University of Washington’s campus. The plant, which is located on
September 1, 2016
Project Spotlight
Process Solutions Commissions New Control Panel For Hydroelectric Dam
A Northwest customer approached Process Solutions to design and build a new control panel for the Powerhouse of an existing Hydroelectric dam. Construction of the
May 11, 2015
Airixa Industrial Refrigeration & Energy Management Software Screens
Facility overview
Refrigeration system overview
Compressor overview
Evaporator overview
Ripening room dashboard

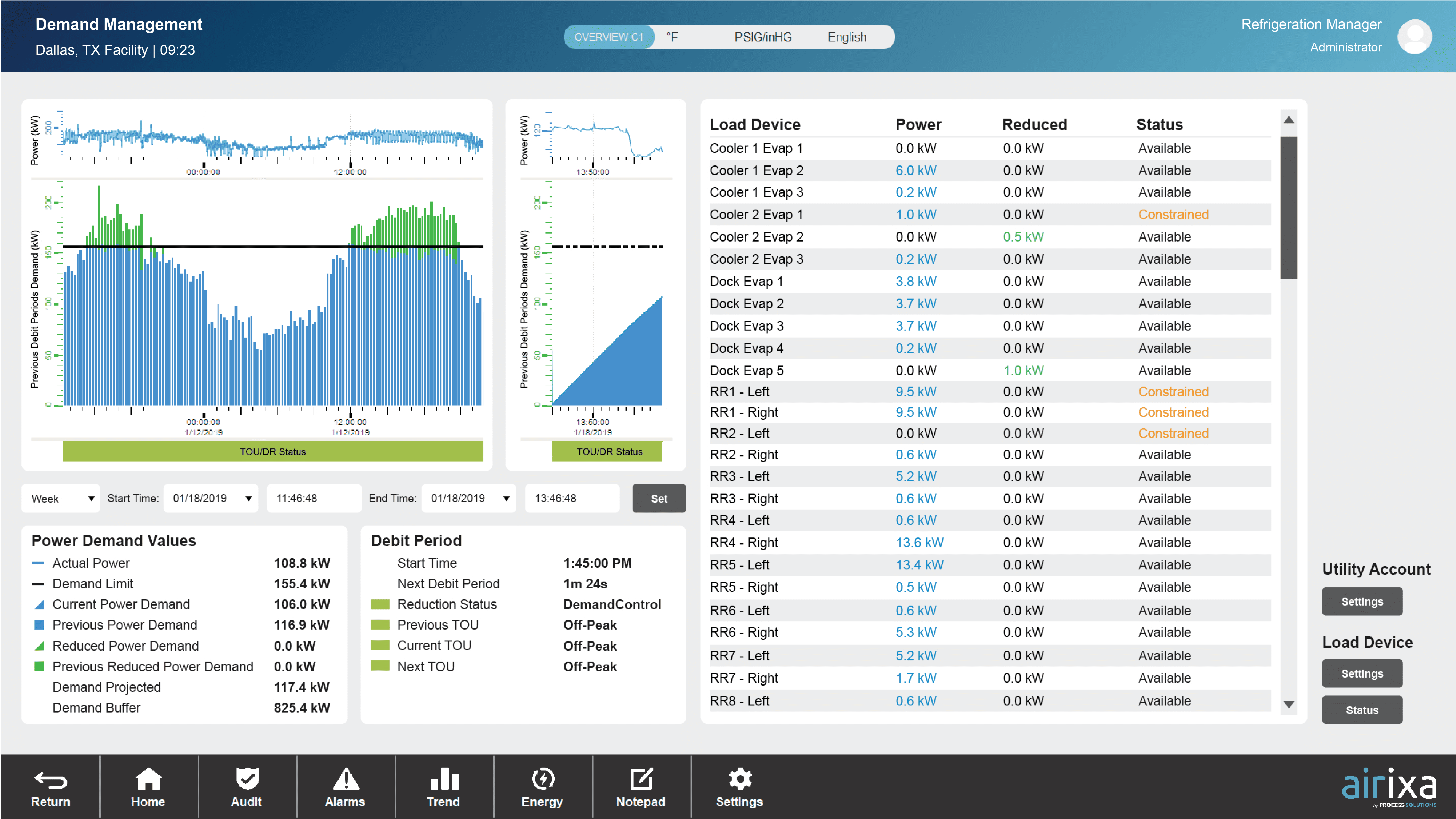

Energy demand management dashboard
Utility account report with renewable energy generation tracking
Ripening rooms overview
DAQuery Machine Monitoring Software Screens
Custom dashboard
Trend of multiple data tags
Devices and corresponding data tags with data logging configurator
Recipe builder
